T3V1 Carbon Fiber LCG Chassis Kit RC Performance Carbon LCG Chassis Kit and Link Kit Capra Portal Axle ESC Battery Servo Plate (Links and Rear Riser)

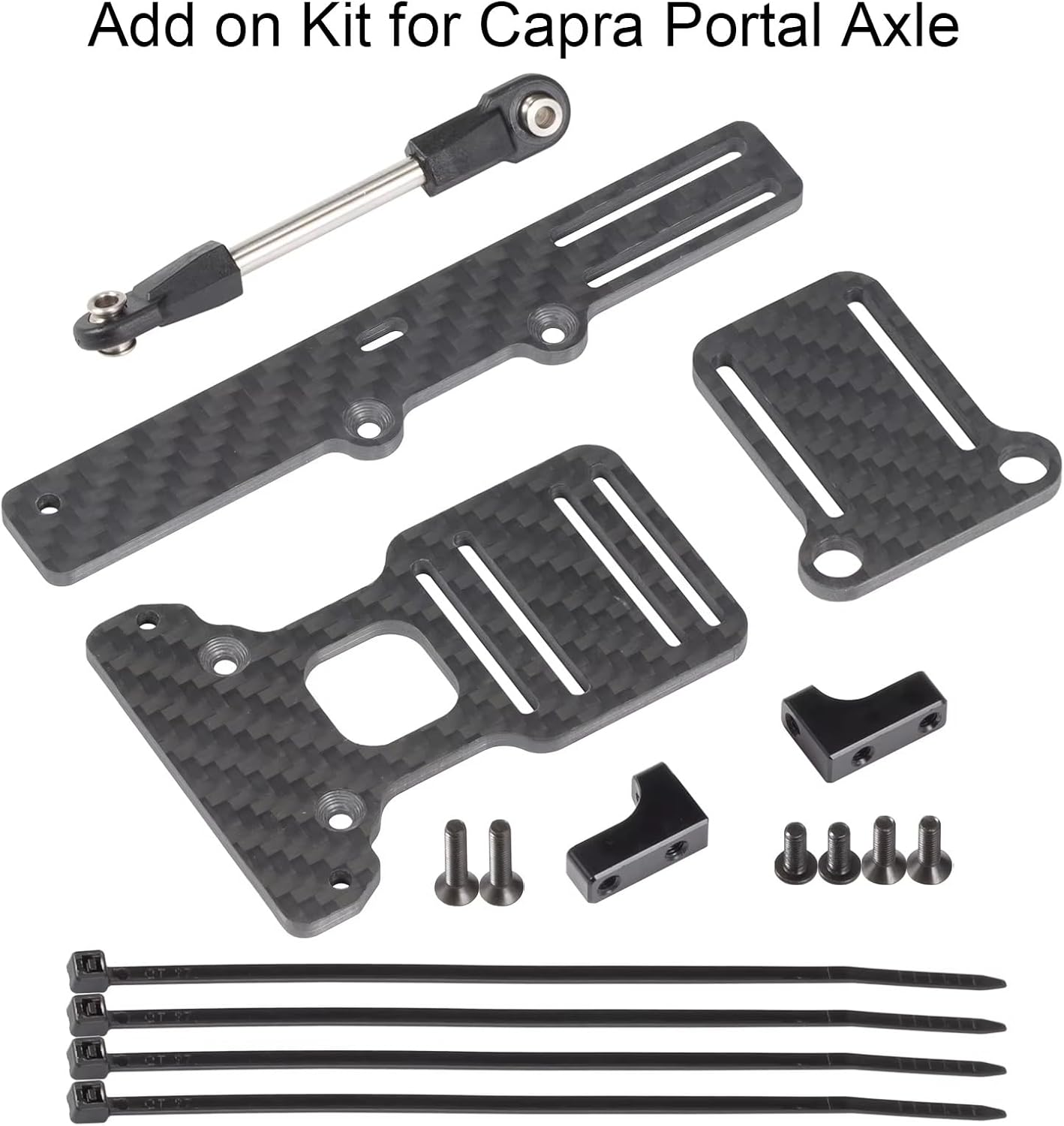

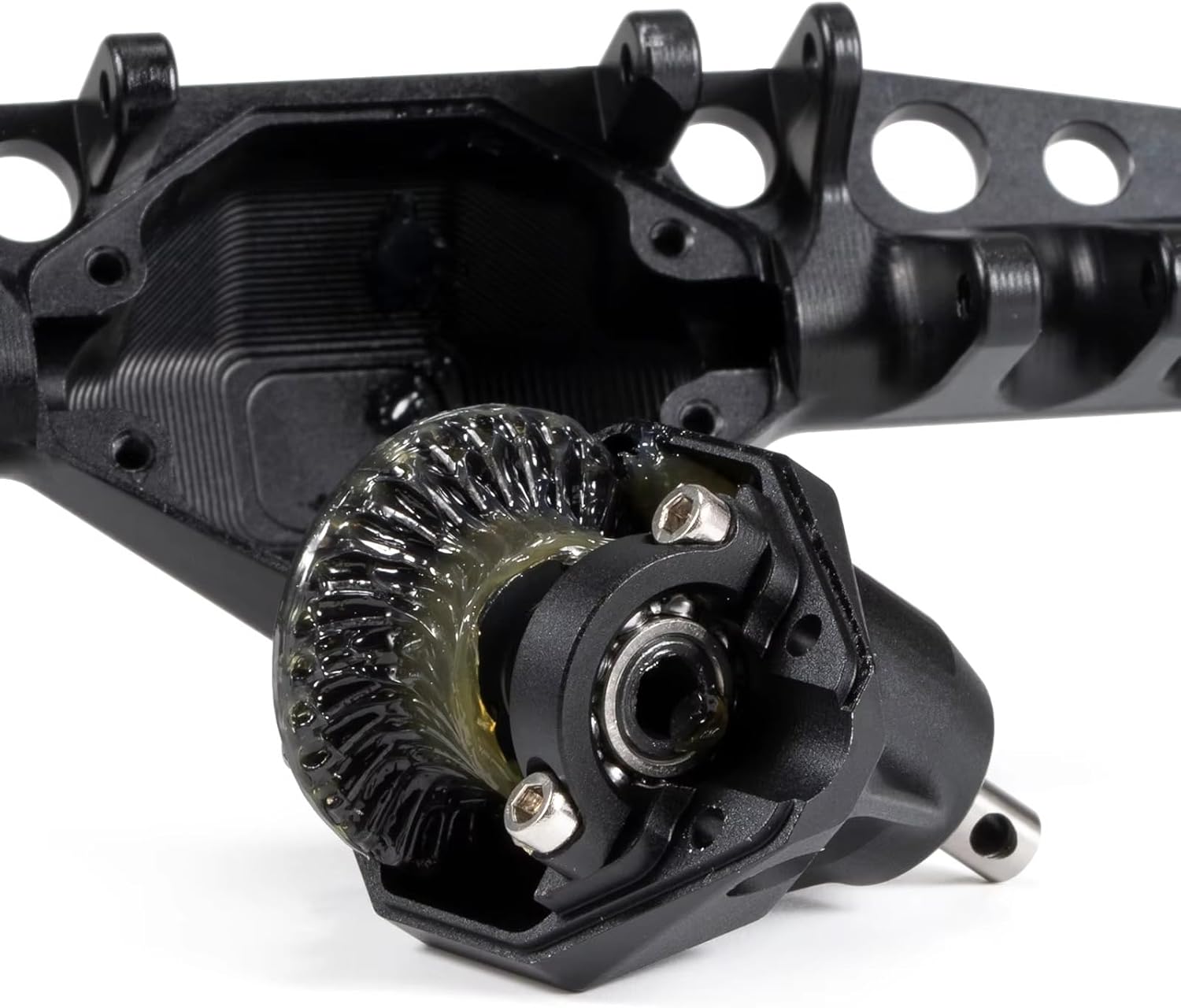

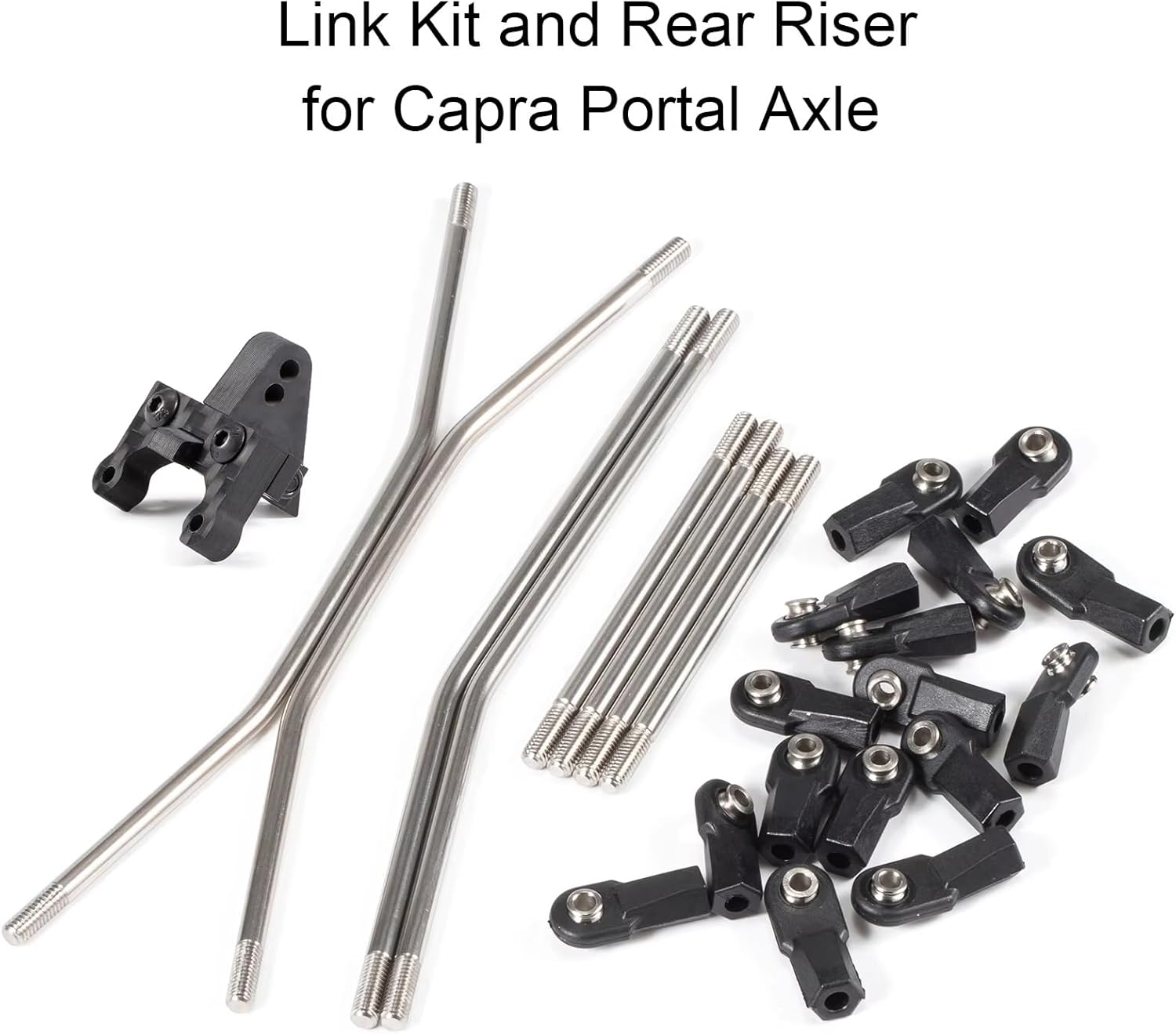

Description Feature: Frame rails laser cut from 3mm carbon fiber. Extremely strong and extremely light. 0.92oz / 26 grams (pair). 13 degree angled skid plate, super slippery for sliding over rocks and debris. Skid hole pattern is for Axial 3 gear transmission or simular. We have provided you with Multiple front and rear shock mount positions for shock tunning, and holes for a bearing carrier as well. Multiple rear mounting options for wheelbase tunning. Excellent breakover and climbing abilities, compact is the overall theme, keep it light, keep it simple. Material: Carbon Fiber: Rails, Rear Link Riser, Add on Kit of Capra Portal Axle Delrin: Body Mount / Chassis Brace, Skid Plate Stainless Steels: Link Kit Applicable model: Poizd T3V1 One piece housing construction. CNC Machined from 7075 Aluminum. Anodized, Color: Black / Silver. Offset C-hubs is machined into the housing for strength, durability, clearance and scale appearance. Increased Caster Angle to 20° for improved steering. 50° of side to side steering. (5° over stock Capra/SCX10.3 axles) High quality heat treated S2 steel front axle VDI shaft , rear axle shafts and portal stub shafts, large increase in strength. . Machined and hardened ring, pinion and portal gears, Stronger than stock substantially. 8-30T Ring/ Pinion gear set, 12-23T Portal gear set, 7.19:1 Ratio. 195mm Width Pin to Pin, Slightly wider than Axial SCX10.3, and slightly narrower than Axial Capra. Front axle weight 307g. Rear axle weight 218g. Two servo mounting options are available: A: Use the removable Panhard/3rd link mount as a CMS option. (Chassis-Mounted Servo) B: Use the removable BAT mounts as a AMS option. (Behind Axle Mounted Servo) Chassis kit Includes: x1 Carbon Rails (pair) x1 Body Mount / Chassis Brace - Front x1 Body Mount / Chassis Brace - Rear x1 Skid Plate x1 Chassis Brace - Rear Here is some info on how we put these rigs together. This is a builders kit so it does not have to be put this way exactly, you can build it with any parts of your personal choice.

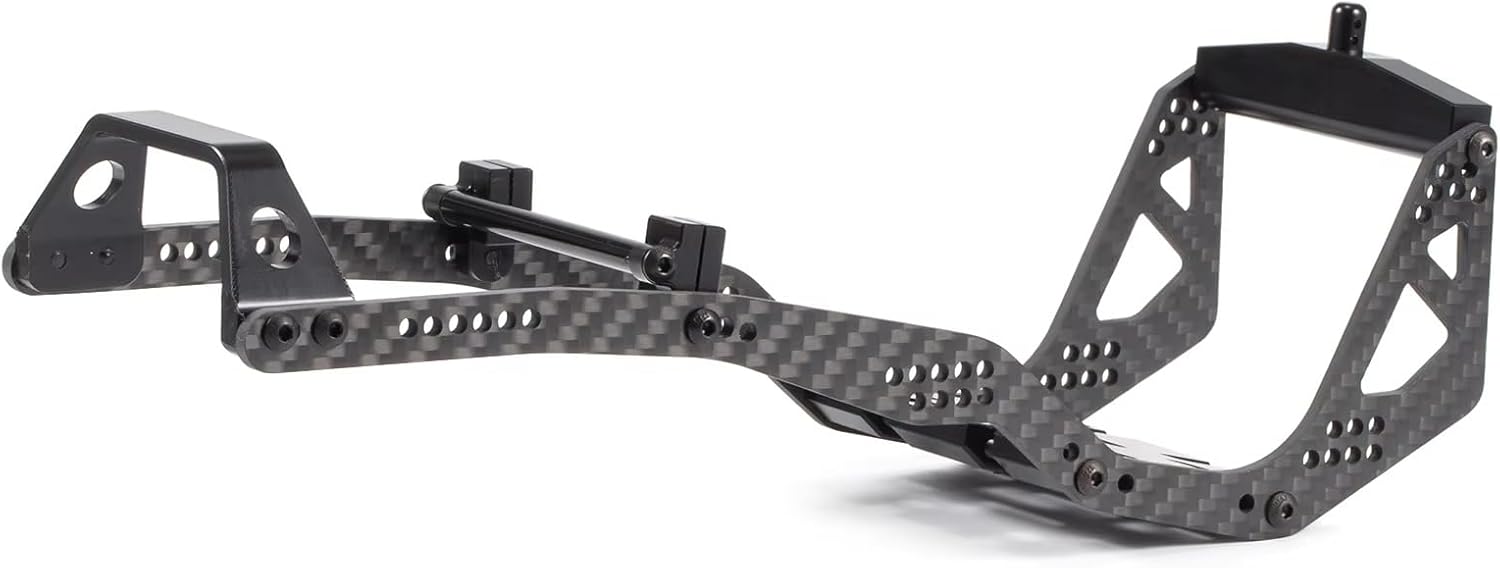

• Ultra-Lightweight & Rigid Carbon Fiber Construction:The T3V1 chassis kit features precision laser-cut 3mm carbon fiber frame rails, offering exceptional strength while keeping the weight at an ultra-light 26g per pair, ensuring maximum performance for RC crawlers.
• Optimized Skid Plate Design for Superior Rock Crawling:The 13-degree angled skid plate is designed for smooth and effortless sliding over rocks and debris, enhancing climbing and breakover capabilities in tough terrains.
• Highly Adjustable Suspension & Wheelbase Tuning:Multiple front and rear shock mounting positions provide extensive tuning options, allowing users to fine-tune suspension settings, while rear mounting options enable precise wheelbase adjustments for optimized performance.
• Versatile & Compatible Transmission Mounting:The skid plate hole pattern is specifically designed to accommodate Axial 3-gear transmissions and similar setups, ensuring wide compatibility with different drivetrain configurations.

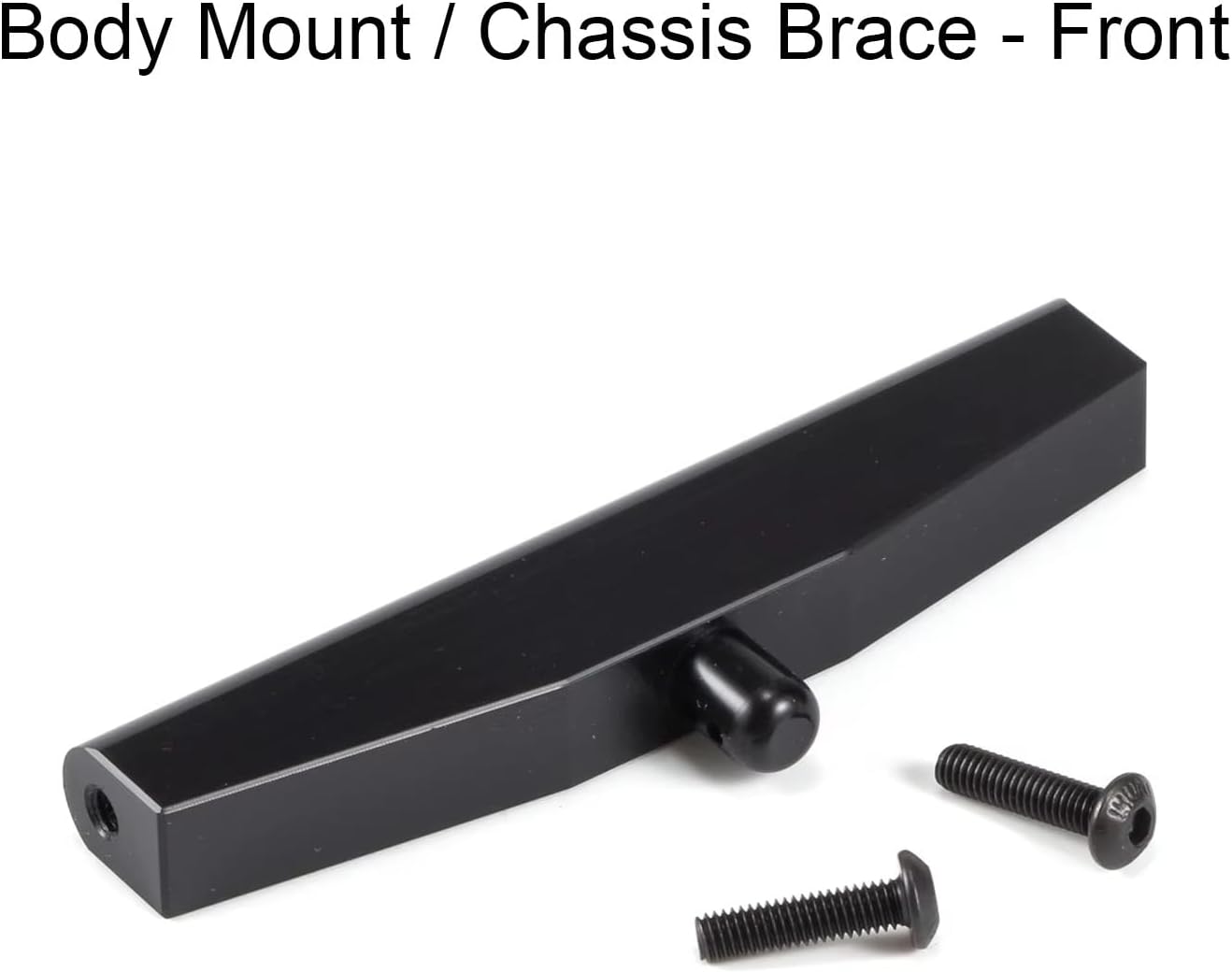

• Premium Multi-Material Components for Durability:This kit includes high-quality Delrin body mounts, chassis braces, and a skid plate, as well as stainless steel links, providing a durable and reliable foundation for high-performance RC crawler builds.
